hese mini packer trucks, having a capacity of 5,5 and 8 cubic metres, make it possible to collect and compact waste, thus reducing its volume and making transport easier.
Характеристики
- вместимость от 5.5 до 8 квадратных метров
| модель | AZIMUT 6
|
AZIMUT 8
|
|---|---|---|
| Dump body volume (m3)
|
5.5
|
8
|
| Total mass on ground (kg)
|
3500 - 5200
|
5000 - 8000
|

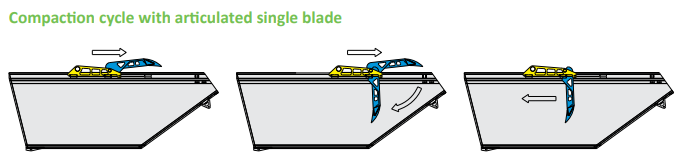

| Compaction system
|
Articulated single loader blade
|
|
| Compaction cycle
|
Manual / automatic / synchronised | |
| Adjustable compaction ratio
|
From 1:1 to 4:1
|
|
| Discharge system
|
By means of dump body tip-up | |

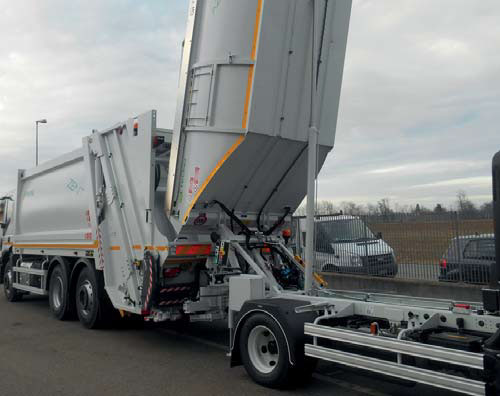

| Unloading into larger compactors
|
●
|
●
|
| Rear infra-red camera with colour monitor in the cab
|
●
|
●
|
| Rear white LED beacon
|
●
|
●
|

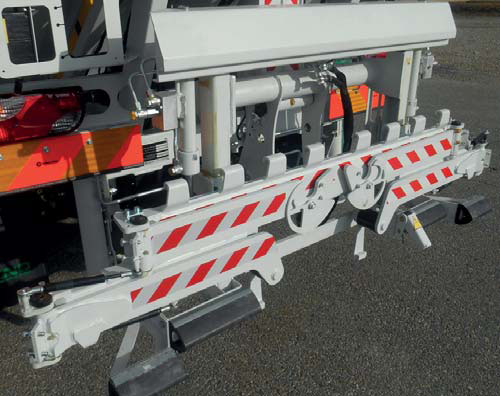

| Dual rotation bin tip-up device
|
○
|
○
|
| Flashing yellow LED beacon
|
●
|
●
|
| Bin identification system
|
○
|
○
|
| Merlo Mobility satellite management system
|
○
|
○
|
| Load weighing device
|
○
|
○
|
| Rear platform for operators
|
○
|
○
|
| STAINLESS STEEL dump body
|
- | ○
|
| ALUMINIUM dump body
|
○
|
- |
| Hybrid version
|
- | ○
|
● в стандартной комплектации
○ опционально
Подробное описание

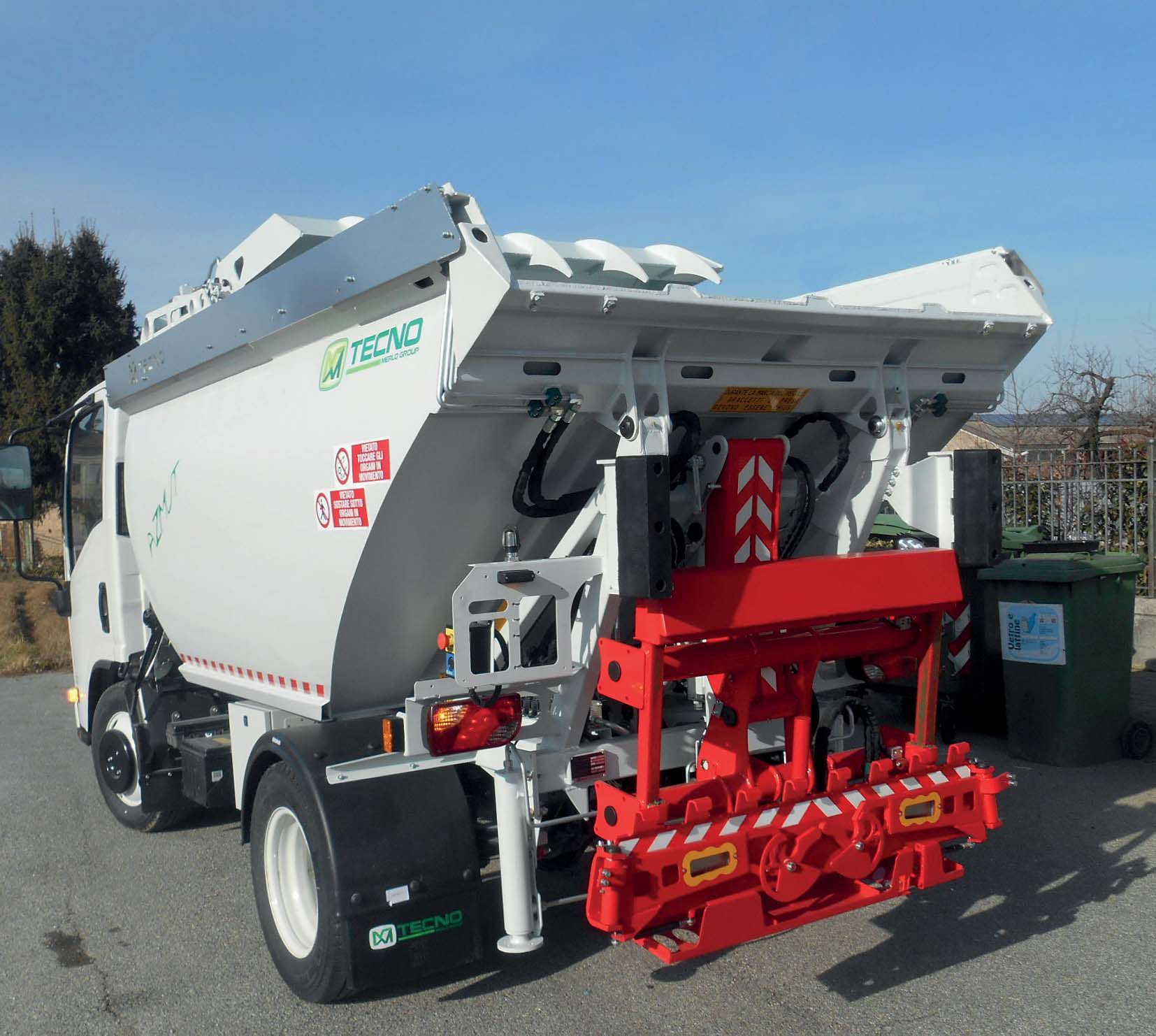

The AZIMUT range of attachment supplied by TECNOINDUSTRIE MERLO S.p.A. comprises rear loader minicompactors, with unloading by tipping over the bucket, fitted with an articulated single-blade compact on system with a rotary blade and a slide running on straight guideways. The central rear part of the attachment houses the bin pick-up, lifting and emptying system (optional) with a possible load-assist device. The attachment is compliant with Machinery Directive 2006/42/CE and is certified by an independent notifi ed body.
